Precision-engineered aluminum alloy sliding, folding, screen, and specialized entrance door configurations manufactured to international thermal, acoustic, and hurricane-impact standards.
Why modern commercial and luxury residential developments are transitioning from legacy hot-rolled steel to thermal-break extruded aluminum profiles made in China.
Originally patented in the late 19th century in the UK, classic Crittall doors were fabricated using solid hot-rolled steel sections. While steel offered slender sightlines, it suffered from three critical engineering drawbacks: low thermal resistance (causing severe cold bridging), extreme weight requiring structural steel lintel reinforcement, and high susceptibility to galvanic oxidation (rusting) in coastal or high-humidity environments.
Modern Chinese manufacturers have engineered high-grade 6063-T5 aluminum extrusions that perfectly replicate the iconic black-framed grid design while integrating dual PA66-GF25 polyamide thermal break strips, multi-chambered internal profile cavities, and lightweight structural rigidity.
Today’s aluminum Crittall doors manufactured by top-tier Foshan factories accommodate high-specification insulated glass units (IGUs). Rather than single-pane 4mm float glass sealed with traditional putty, modern aluminum profiles accept 28mm to 42mm double or triple-glazed units featuring Low-Emissivity (Low-E) coatings, Argon gas infills, and acoustic PVB interlayers.
This structural evolution allows architects to achieve ultra-low U-factors (under 1.2 W/m²K), superior acoustic attenuation (Rw up to 45 dB), and design pressure wind resistance exceeding 5000 Pa—making them suitable for luxury penthouses and high-rise commercial facades.
Comparative structural and physical performance metrics across aluminum Crittall door variants for B2B procurement officers and principal architects.
| System Variant | Profile Wall Thickness | Thermal Break Tech | Glazing Package | Surface Treatment | Wind Load Resistance | Primary Application |
|---|---|---|---|---|---|---|

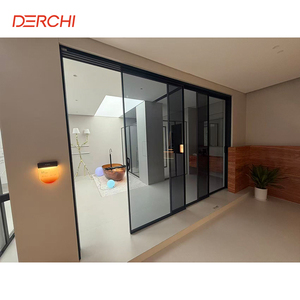

| Slimline Interior Partition | 1.2 mm - 1.4 mm | Non-Thermal / Monolithic | 5mm + 1.14PVB + 5mm Laminated | AkzoNobel Powder Coat / Anodized | 1.5 kPa (Interior Grade) | Executive Offices, Hotel Suites |
| Exterior Thermal French Crittall | 1.8 mm - 2.0 mm | 24mm PA66-GF25 Polyamide | 6mm Low-E + 12Ar + 6mm Tempered | Qualicoat Class 2 / PVDF 3-Coat | 3.5 kPa - 4.5 kPa | Villa Entrances, Luxury Balconies |
| Heavy-Duty Lift & Slide Crittall | 2.0 mm - 3.0 mm | Multi-Chambered Isolator | 8mm Low-E + 16Ar + 8mm Tempered | Fluorocarbon PVDF (Coastal Grade) | 5.0 kPa (Hurricane Rated) | Oceanfront Resorts, Penthouses |
| Bi-Fold Accordion Grid System | 1.8 mm - 2.2 mm | Continuous Thermal Strip | 5mm + 14Ar + 5mm Double Glazed | Architectural Matte Black / Bronze | 3.0 kPa | Patio Openings, Commercial Stores |
*Note: All systems can be custom extruded to architectural shop drawings. Specific structural wind-load calculation reports are issued prior to manufacturing.
A rigorous qualification framework for international project sourcing directors, general contractors, and facade consultants.
Ensure the factory utilizes primary 6063-T5 aluminum ingots rather than re-melted scrap aluminum. Primary ingots guarantee tensile strengths exceeding 160 MPa and yield strengths above 110 MPa, preventing profile warping under structural glass weights.
Crittall doors rely on crisp, linear muntin bar grids (glazing bars). Top factories utilize 5-axis CNC machining centers imported from Germany or Italy to cut, notch, and joint glazing bars with tolerances within ±0.1mm, ensuring gapless 90-degree corner joints.
Verify Qualicoat (for powder coating) or Qualanod (for anodizing) certifications. For coastal environments, 3-coat PVDF (Polyvinylidene Fluoride) coatings must meet AAMA 2605 standards to resist salt spray corrosion for over 3,000 continuous hours.
Headquartered in Foshan, China's premier aluminum manufacturing hub, Doorreme combines 20+ years of engineering craftsmanship with global export infrastructure.
Founded in 2004, Doorreme operates a state-of-the-art 123,000 square meter production facility equipped with high-precision extrusion presses, automated glass insulating lines, and robotic powder coating plants. Employing over 800 skilled professionals, our factory maintains an annual production capacity exceeding 500,000 square meters of custom fenestration systems.
Demonstrated engineering excellence in complex international commercial facades and luxury residential developments.
Supplied over 14,000 m² of custom curtain wall facades and 4,300 m² of overhead skylight structures. Engineered high-span aluminum support mullions capable of handling seismic movement and intense UV exposure in Santa Cruz.
Fabricated top-hung thermal aluminum windows and exterior insulated curtain wall panels. Delivered under expedited schedules with customized Low-E solar control glass units to withstand coastal tropical conditions.
Engineered 120 sets of heavy-duty sliding aluminum patio doors and glass railing safety enclosures. Applied 3-coat marine-grade PVDF coatings to resist aggressive ocean salt air corrosion over extended lifespans.
Emerging technology shifts and architectural specifications transforming the global demand for aluminum Crittall systems.
The next generation of aluminum Crittall interior partitions and exterior entryways will feature integrated Smart PDLC (Polymer Dispersed Liquid Crystal) switchable glass. With instantaneous transition between transparent and opaque states via wireless home automation or wall switches, architects can eliminate traditional blinds while preserving clean industrial grid aesthetics.
Advanced alloy formulation using 6005A-T6 structural aluminum enables profile extrusions with interlocking mullion sightlines reduced from traditional 35mm down to 12mm–15mm. This maximum transparency design trend allows for seamless spatial transition while meeting rigorous wind load deflections.
Driven by European Green Deal standards and LEED v4 certifications, leading Chinese door factories are adopting certified low-carbon aluminum produced via hydro-electric powered smelters. Incorporating over 75% recycled content dramatically reduces embodied carbon footprint without sacrificing mechanical properties.
Heavy-duty aluminum Crittall exterior glass walls weighing over 400 kg per panel are increasingly paired with concealed motorization systems. Hidden heavy-duty tracks integrated into smart building management systems (BMS) provide whisper-quiet push-button operating capability.
Direct engineering and commercial answers to common questions raised by international developers, importers, and architects.
Submit your CAD elevations, project opening schedules, or tender drawings to receive a comprehensive factory-direct proposal and structural calculation review within 24 hours.
