Explore our export-grade architectural aluminum vertical sliding single hung windows, custom manufactured to North American NFRC/AAMA, Australian AS2047, and European CE engineering benchmarks.
In contemporary architectural design and commercial construction, fenestration systems are no longer passive exterior envelope elements; they are highly dynamic, engineered sub-assemblies critical to energy conservation, structural resilience, and acoustic comfort. Among vertical fenestration configurations, the aluminium single hung window remains an industry mainstay for residential housing developments, multi-family mid-rise projects, and modern commercial builds across North America, Australia, and the Middle East.
As a global buyer, real estate developer, or curtain wall subcontractor searching for a verified China Top Aluminium Single Hung Windows Supplier, evaluating manufacturing capacity requires looking far beyond basic profile dimensions. Premium procurement strategy demands rigorous assessment of profile extrusion metallurgy (typically T5 or T6 tempered 6063 architectural aluminum), thermal barrier technology (polyamide PA66 GF25 strip insertion versus pour-and-debridge polyurethane structural isolates), precision counter-balance hardware mechanisms (constant force spring vs. heavy-duty spiral balances), and system-level weatherproofing ratings.

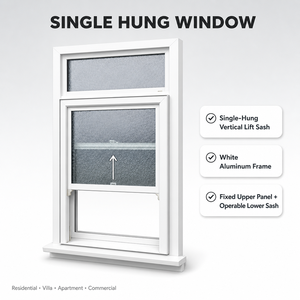

Information Gain Metric: Single hung windows incorporate a fixed upper sash and an operable lower vertical sliding sash. This mechanical layout delivers superior air infiltration ratings (ASTM E283 compliance < 0.1 cfm/ft²) and water resistance performance compared to horizontal sliders, because gravitational forces assist sash sealing against the horizontal sill gaskets while eliminating sash drop or horizontal frame deflection under high wind load pressure (DP ratings up to DP70).
Doorreme Aluminum Industry Co., Ltd. (operating from its state-of-the-art 123,000 square meter manufacturing base in Foshan, Guangdong) has systematically redefined how international B2B buyers procure fenestration packages from China. By integrating precision German CNC machining, Italian profile coating lines, and comprehensive CAD/BIM shop drawing engineering, China's leading aluminum window suppliers deliver structural integrity and compliance peace of mind while trimming project capital expenditure by 25% to 40% compared to local domestic fabricators.
Polyamide PA66 GF25 structural thermal breaks isolate exterior profile temperatures, drastically decreasing thermal bridging and delivering U-values down to 1.2 W/m²K (0.21 BTU/hr·ft²·°F).
Engineered frame wall thicknesses ranging from 1.4mm to 2.0mm accommodate coastal hurricane zones, achieving Design Pressure ratings up to DP65/DP70 and wind load resistance of 4.5 kPa.
Double and triple insulated glass units (IGU) equipped with acoustic PVB laminated glass reduce noise transmission by up to STC 42 dB, perfect for urban and airport perimeter builds.
To ensure decades of effortless vertical sliding performance, an aluminum single hung window relies on precise mechanical synergy between aluminum extrusions, hardware balance systems, double-stage weatherstripping, and glass glazing structural silicone.
China top suppliers utilize primary 6063-T5 or T6 grade billet aluminum rather than recycled secondary scrap. Architectural extrusions undergo strict artificial aging heat treatment to achieve a Webster hardness of ≥12. High structural rigidity ensures that large single hung units (up to 1500mm wide by 2400mm high) maintain mechanical tolerance without frame twisting or operational binding.
The smooth sliding action of a single hung window is determined by its counter-balance mechanism. Foshan tier-1 manufacturers implement two primary hardware configurations:
Building envelopes in coastal environments (such as Florida, Australia, or the Caribbean) demand ultra-durable exterior metal finishes. Doorreme provides AAMA 2605 compliant PVDF (Fluorocarbon) spray coatings and high-micron anodizing finishes resistant to salt spray corrosion (passing 3,000-hour neutral salt spray ASTM B117 testing), color fading, and intense UV degradation.
| Performance Characteristic | Standard Specification | High-Performance / Coastal Upgrade | Test Standard |
|---|---|---|---|
| Profile Thickness | 1.4 mm - 1.6 mm Architectural Alloy | 1.8 mm - 2.0 mm Heavy Duty Reinforced | GB 5237 / AAMA 101 |
| Thermal Transmittance (U-Value) | 2.2 - 2.8 W/m²K (Double Glazed) | 1.2 - 1.6 W/m²K (Thermal Break + Low-E Triple) | NFRC 100 / EN ISO 10077 |
| Air Infiltration Resistance | < 0.15 cfm/ft² | < 0.05 cfm/ft² (Multi-stage EPDM Gasket) | ASTM E283 / AS 2047 |
| Water Penetration Pressure | 300 Pa (6.27 psf) | 500 Pa - 700 Pa (14.6 psf High Sill) | ASTM E547 / ASTM E331 |
| Acoustic Insulation (STC) | STC 28 - 32 dB | STC 38 - 43 dB (Laminated IGU) | ASTM E90 / ASTM E413 |
| Surface Finish Compliance | Powder Coating (AAMA 2604) | PVDF 3-Coat Fluorocarbon (AAMA 2605) | AAMA 2605 / ISO 9001 |
The global fenestration market is experiencing rapid transformation driven by net-zero carbon building regulations, stringent energy performance mandates, and off-site modular construction trends. Sourcing single hung aluminum windows from China leading suppliers presents distinct technological advantages:
As North American Energy Star 7.0 requirements and European EPBD directives take effect, standard clear double glazing is rapidly being replaced by Low-E coated triple-pane units filled with 90%+ Argon gas. Warm-edge composite spacers (such as Technoform or Swisspacer) reduce thermal conductivity at the glass perimeter, preventing perimeter condensation in cold climates.

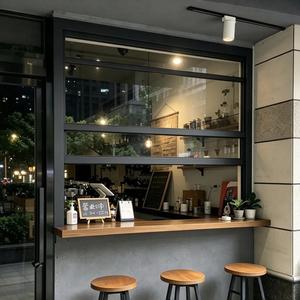

The traditional manually operated vertical slider is evolving into motorized "Guillotine" style single hung windows. Integrated low-voltage electric actuators allow automated opening via smart home automation, rain sensors, or commercial building management systems (BMS), providing automated purge ventilation in modern residential apartments and luxury hospitality projects.
Architects are continuously demanding narrower frame sightlines to maximize natural daylighting. Modern aluminum profile engineering utilizes high-tensile 6063-T6 extrusions with internal steel reinforcements, enabling ultra-slim interlocking stiles (down to 30mm visual width) while maintaining high structural wind resistance.
Founded in 2004, Doorreme Aluminum Industry Co., Ltd. has grown into one of Foshan's premiere custom aluminum window, door, and curtain wall manufacturers. Spanning a vast 123,000 m² industrial production plant with over 800 skilled craftsmen and technical engineers, Doorreme delivers complete window and wall solution packages to projects across more than 140 countries and regions worldwide.
Equipped with fully automated CNC cutting centers, double-head precision corner crimping machinery, and automated glass glazing lines to achieve sub-millimeter fabrication accuracy.
In-house structural engineering team provides FEA wind pressure calculations, water drainage simulation, and detailed AutoCAD / Revit BIM shop drawings before fabrication starts.
Units are wrapped in protective blue film, corner-shielded, packed into non-fumigation plywood crates with internal air-cushioning to prevent sea transit damage.
Whether supplying high-rise apartment single hung window packages, luxury villa thermal break fenestration, or commercial structural silicon curtain walls, Doorreme adheres strictly to its founding ethos: "Better Service, More Value".
Get instant answers to technical, commercial, and operational procurement inquiries regarding Chinese aluminum single hung window manufacturing.
Submit your project window schedules, CAD drawings, or rough opening dimensions today. Our senior engineering team will respond with structural feedback and transparent factory pricing within 24 hours.
