Precision-engineered, thermal-break double door solutions tested for wind-load, acoustic attenuation, and hurricane impact compliance.
Modern architectural developments demand exterior entry systems that synthesize high structural integrity, supreme thermal insulation, advanced security features, and pristine minimalist design. For general contractors, commercial developers, architectural specifiers, and hardware distributors, procuring customized OEM aluminum double front doors directly from experienced China-based manufacturing hubs presents an unmatched combination of structural engineering versatility and cost efficiency.
Unlike standard single residential swing doors, custom double exterior entry doors—often spanning widths from 1,600 mm up to 3,000 mm and heights exceeding 3,200 mm—impose rigorous physical demands regarding wind load resistance, frame deflection, multi-point lock alignment, and thermal barrier continuity. Sourcing from a verified manufacturer certified under international standards (such as NFRC, CSA, and Florida Product Approval for coastal hurricane zones) ensures structural compliance without compromising aesthetic intent.
Key Engineering Standard: High-performance architectural double doors must integrate extruded aluminum profiles fabricated from alloy 6063-T6 or 6005-T6, utilizing polyamide (PA66GF25) thermal barrier strips to achieve thermal transmittance U-factors below 0.24 Btu/h·ft²·°F (1.35 W/m²K) in extreme climates.
The core structural frame of premium aluminum double doors relies heavily on high-precision aluminum alloy extrusions. Standard architectural Grade 6063-T6 aluminum provides superior surface finish options (including AAMA 2605 PVDF powder coating and 25-micron hard-anodized finishes), excellent corrosion resistance, and structural yield strength suitable for high-frequency entrance doors. For extra-large grand entrances or commercial storefront configurations subjected to severe wind pressure (DP values ≥ 55 PSF), engineered profile wall thicknesses ranging between 2.0 mm and 3.0 mm are implemented to prevent frame torsion.
Inside the door leaf, advanced composite core architectures—such as high-density aluminum honeycomb panels combined with polyurethane (PU) thermal foam or acoustic mineral wool—are utilized to achieve optimal structural rigidity-to-weight ratios. This specialized sandwich panel structure effectively eliminates panel bowing caused by differential indoor-outdoor temperatures (thermal bridging effect) while providing sound transmission class (STC) ratings exceeding 42 dB.
As an industry-leading fenestration and structural facade enterprise operating from Foshan—China's global aluminum manufacturing capital—our dedicated factory platform (Doorreme Aluminum Industry Co., Ltd.) has pioneered engineered architectural openings since 2004. Encompassing a massive 123,000 m² industrial facility powered by over 800 skilled technicians and engineers, we support global procurement partners across 140+ countries and regions.
Delivering an annual production capacity of 500,000 m² with computerized German CNC profile machining centers and automatic double-hung glass line integration.
Backed by over 40 technical patents, our custom entrance doors meet strict international building codes including NFRC, CSA, CE, and ISO9001 compliance standards.
From initial site elevation analysis and wind-load calculations to structural shop drawings and on-site alignment guidance for complex commercial builds.
Whether fulfilling customized multi-unit residential contracts or fabrication requirements for luxury villa frontages, our structural engineering team offers complete OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer) services. Custom specifications cover exact frame dimensions, customized transom daylight panels, integrated sidelights, structural mullion reinforcement, custom color matching (RAL spectrum), and advanced biometric hardware prep.
To assist project architects and procurement managers in selecting the optimal entrance door system, we categorize our custom OEM aluminum double front door offerings into four core structural configurations:

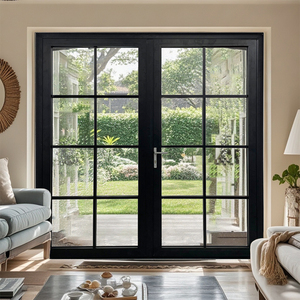

Designed specifically for luxury residential estates and high-end hospitality projects in cold northern or hot tropical environments. Incorporating a multi-chambered 75mm or 90mm profile system joined by 24mm PA66GF25 insulating strips, this system accepts triple-glazed Low-E insulated glass units (IGUs) with argon gas fill. German multi-point locking gear (such as SIEGENIA or ROTO hardware) ensures perimeter compression seal against driving rain and wind infiltration.

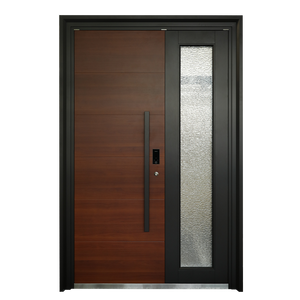

Engineered for high-security, high-prestige residential openings. Featuring solid cast aluminum sculptured exterior panels (thickness 8mm to 12mm) fused to a thermal-break extruded frame. Finished with multi-coat fluorocarbon PVDF baking paints, these double entry doors offer exceptional resistance to atmospheric salt-spray corrosion, violent intrusion attempts, and UV fading over decades of exposure.

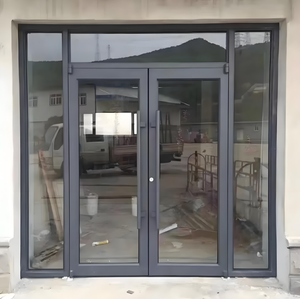

Tailored for high-traffic retail storefronts, office building main lobbies, and public infrastructure facilities (hotels, shopping malls, transport hubs). Designed with heavy-duty top-hung concealed overhead door closers, structural silicone glazing (SSG), panic hardware compatibility, and integrated smart glass (PDLC switchable privacy glass) or impact-resistant laminated hurricane glass.
Accommodating massive structural door leaves weighing up to 500 kg per panel. Utilizing floor-spring heavy-load pivot axes with adjustable hydraulic damping, these minimalist aluminum double pivot doors feature flush exterior panel designs, integrated LED ambient handle lighting, and smart biometric (fingerprint/RFID/facial recognition) locking mechanisms.
As the global architectural sector transitions toward net-zero building standards and digitized access controls, the manufacturing standards for aluminum double front doors are undergoing a rapid technological evolution. Sourcing directors and developers should realign their procurement parameters with four major industry trends:
Future double front doors will routinely demand total system U-factors ≤ 1.1 W/m²K. Achieving this requires warm-edge spacer technology, aerogel insulated profile cores, and quad-seal EPDM weatherstripping gaskets.
Mechanical keys are rapidly giving way to motorized multi-point locks concealed within the door frame. Systems are pre-wired for seamless integration into KNX, Zigbee, or Crestron smart building automation systems.
Market demand is heavily shifting toward ultra-narrow sightlines (narrow frame designs) that maximize natural daylight glass area while maintaining DP70 hurricane-impact structural ratings.
Corporate sustainability mandates require lower embodied carbon. Procurement projects increasingly favor suppliers utilizing certified low-carbon recycled aluminum billets (hydro-powered aluminum production).
Use the structural specification table below to benchmark engineering parameters during OEM contract negotiations and architectural spec writing:
| Performance Parameter | Thermal Break French Double Door | Heavy-Duty Cast Villa Double Door | Commercial Storefront Double Door | Smart Architecture Pivot Double Door |
|---|---|---|---|---|
| Frame Profile Depth | 75 mm / 90 mm | 100 mm / 120 mm | 100 mm / 150 mm | 100 mm / 125 mm |
| Alloy Wall Thickness | 2.0 mm - 2.5 mm | 2.5 mm - 3.0 mm + 10mm Cast | 2.5 mm - 3.0 mm | 3.0 mm heavy structural |
| Thermal Barrier Material | PA66GF25 24mm strip | PA66GF25 30mm strip | Optional / Custom | PA66GF25 Multi-chamber |
| Glazing Configuration | 5mm+18A+5mm Triple Low-E | Decorative Double Glazed | 6mm+1.52PVB+6mm Laminated | 8mm+16A+8mm Toughened IGU |
| Air Infiltration (ASTM E283) | < 0.10 cfm/ft² | < 0.08 cfm/ft² | < 0.15 cfm/ft² | < 0.12 cfm/ft² |
| Water Resistance (ASTM E331) | ≥ 450 Pa (9.37 PSF) | ≥ 600 Pa (12.5 PSF) | ≥ 400 Pa (8.35 PSF) | ≥ 500 Pa (10.4 PSF) |
| Acoustic Insulation (STC) | 38 dB - 42 dB | 42 dB - 46 dB | 35 dB - 38 dB | 36 dB - 40 dB |
| Surface Finish Options | Fluorocarbon PVDF / Anodized | Hand-engraved PVDF paint | AAMA 2604 / 2605 Powder | Hard Anodized / Fine Texture |
Direct technical answers to common questions raised by procurement managers, developers, and trade importers when sourcing aluminum double entry doors from China:
