Heavy-Duty

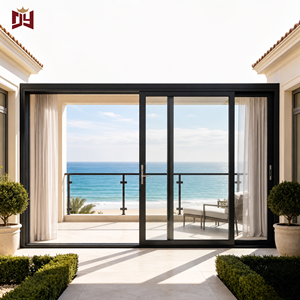

Explore our heavy-duty lift-and-slide systems, ultra-slim sightline doors, and integrated side-window configurations manufactured to custom architectural specs.
In modern architectural design, modern residential villas, luxury resorts, and high-end commercial spaces increasingly demand maximal daylight transmission without compromising dynamic envelope performance. OEM/ODM aluminium sliding doors with side windows (sidelights) provide a sophisticated fenestration strategy that bridges structural expanses with operable functionality.
Integrating fixed side windows directly into the main sliding door frame perimeter requires precise structural calculations. Rather than installing separate window punches into masonry wall cavities, unified aluminum structural sub-frames accommodate both the sliding track and the flanking side windows. This minimizes mullion sightlines while maximizing structural rigidity against lateral wind pressures.
Monolithic extrusion profiles enable seamless structural transitions between active sliding panels and static side transom glazing, eliminating thermal leaks and unsightly visual seams.
Utilizing high-density PA66 GF25 insulation strips inside aluminum profile cavities creates an impenetrable barrier against heat conduction, driving U-values down to residential passive-house thresholds.
Engineered for extreme meteorological stress zones, our doors sustain wind load ratings exceeding 4000 Pa (AS2047, CE, and NFRC certified testing), perfect for coastal villa applications.
B2B project buyers, procurement managers, and commercial developers can specify every mechanical and thermal layer according to climate zone and building code compliance.
| System Component | Standard Commercial Grade | High-Performance Thermal Break Option | Testing Standards |
|---|---|---|---|
| Profile Extrusion | 6063-T5 / T6 Aluminum (1.4mm – 2.0mm thickness) | 6063-T6 Architectural Grade (2.0mm – 3.0mm heavy-duty) | GB/T 5237, ASTM B221 |
| Surface Treatment | Powder Coating (AkzoNobel / PPG) | PVDF Fluorocarbon Coating (20+ Year Coastal Resistance) | AAMA 2604 / AAMA 2605 |
| Glass Assembly | 5mm + 12A + 5mm Double Tempered Insulating Glass | 6mm Low-E + 16Ar + 6mm Laminated Argon-filled Triple Glazing | AS/NZS 2208, IGCC, EN 12150 |
| Thermal Insulation | Non-Thermal Break / Standard Cavity | PA66 GF25 Polyamide Thermal Barrier (U-factor ≤ 1.6 W/m²K) | NFRC 100/200, ISO 10077 |
| Hardware & Locksets | Top-Tier OEM German & Chinese Multi-Point Locks | German Roto / SIEGENIA Heavy-Duty Lift-and-Slide Systems | EN 13126, Pas24 Security |
| Weather Sealing | Dual EPDM Gaskets with Dense Pile Weatherstripping | Continuous Vulcanized EPDM Seals + Drainage Track Pressure Valves | ASTM E283, ASTM E331 |
Architectural demand is moving rapidly toward minimalistic profile frames where vertical mullion sightlines drop below 20mm. The side windows are increasingly recessed into surrounding structural drywall or concrete fascia, creating a "frameless glass wall" effect surrounding a sliding center panel.
Future global procurement mandates accessible design (ADA compliant). Next-generation sliding doors incorporate sub-floor concealed drainage tracks with integrated linear siphons. Side windows sit on matching sub-level drainage blocks to ensure waterproof integrity during heavy rainfall events.
With smart building automation expanding, commercial buyers are specifying side windows with PDLC (Polymer Dispersed Liquid Crystal) or dynamic electrochromic glass. With a button click or sensor command, the side transom windows shift from transparent to opaque privacy glass, while the sliding panel remains fully functional.
In accordance with global ESG directives and EU CBAM (Carbon Border Adjustment Mechanism) policies, leading developers require extruded aluminum verified for low embedded carbon emissions (using hydroelectric-refined primary ingot with >30% post-industrial recycled content).
As a premier custom aluminum door and window manufacturer located in Foshan, China, Doorreme offers uncompromised structural reliability, drawing accuracy, and end-to-end export support.
Every single order starts with explicit production drawings. Our 50+ in-house fenestration engineers draft section views, elevation plans, and stress analyses to match your local site specs before fabrication starts.
From alloy billet hardness checking to PVDF micron thickness verification, air tightness pressure testing, and final protective film wrapping, every panel undergoes strict quality gates prior to export container loading.
Exporting to 140+ countries across North America, Australia, Middle East, and Europe. We provide complete sea-freight wooden crate packaging and can dispatch technical leads for complex site installation guidance.
Get quick clarity on OEM/ODM customization options, minimum order requirements, thermal performance ratings, and delivery logistics.
