Explore our top-tier export configurations manufactured to international thermal, structural, and acoustic compliance standards.
In modern architectural engineering, selecting top trusted aluminium doors and windows factories is a critical decision that influences structural safety, energy ratings, building longevity, and operational maintenance. Located in Foshan, Guangdong—the world’s premiere manufacturing hub for structural aluminum profiles—leading fabricators have evolved from basic workshop assemblers into integrated engineering providers capable of delivering sophisticated curtain wall systems, thermal break windows, and ultra-wide patio door configurations to over 140 countries worldwide.
This technical whitepaper provides developers, general contractors, commercial architects, and regional distributors with an authoritative procurement evaluation guide. It addresses structural profile metallurgy, polyamide thermal barriers, surface treatment durability (PVDF vs. Anodizing), double/triple glazing gas-fill mechanics, and rigorous QA protocol auditing required for seamless cross-border supply chain integration.
Primary aluminum billets extruded under strict temperature monitoring yield superior tensile strength, ensuring frame rigidity under heavy wind loading and multi-story structural deflection without frame distortion.
Reinforced Polyamide 66 with 25% glass fiber breaks thermal bridging within the metal frame, drastically reducing U-values to comply with stringent Energy Star, NFRC, and Passive House criteria.
Fluoropolymer surface treatments applied in 3-coat architectural setups deliver exceptional resistance against coastal salt spray, UV discoloration, atmospheric acid rain, and mechanical surface scratching.
When procuring custom structural windows and entrance doors directly from China, evaluating enterprise capability requires verifying both physical manufacturing scale and technical engineering depth. Advanced fabricators operate sprawling 123,000 m² automated production bases equipped with Italian-imported CNC cutting centers, automatic corner-crimping machines, and robotic structural silicone glazing lines.
Unlike standard regional suppliers who rely on outsourced components, high-tier original equipment manufacturers (OEMs) control the full value chain:
The primary point of failure in cross-border architectural window procurement is poor dimensional alignment and inadequate weather sealing specifications. Trusted factories solve this by introducing compulsory pre-production drawing sign-offs and issuing structural calculation certificates for high-rise commercial curtain walls and residential sliding systems.
The global architectural landscape is shifting rapidly toward carbon neutrality, expansive natural lighting, and intelligent building automation. Procurement officers must align their sourcing strategy with the key technological trends shaping the fenestration market through 2030:
Modern interior and exterior architecture heavily favors ultra-slim visual sightlines. High-end sliding doors and casement systems now integrate hidden frame designs where the aluminum boundary is embedded directly into the perimeter wall floor and ceiling structure. With sightlines reduced to under 20mm, these systems require high-strength 6063-T6 alloy frames and heavy-duty stainless steel IGUS track rollers capable of supporting individual glass panels weighing up to 500 kg smoothly.
With international building codes enforcing strict U-value thresholds (often U ≤ 1.4 W/m²K for residential zones and U ≤ 1.1 W/m²K for colder climates), basic aluminum extrusions are no longer acceptable for exterior building envelopes. Leading factories utilize multi-cavity thermal break profiles filled with polyurethane insulation foam alongside warm-edge triple glazing. This significantly reduces HVAC energy consumption in high-rise apartments, luxury villas, and commercial hotels.
Modern glass selection has expanded beyond standard clear float tempered glass. Sourcing now emphasizes engineered dynamic glass configurations: Low-emissivity double-silver coatings to reflect infrared radiation, acoustic PVB laminated glass interlayers (5mm + 1.14PVB + 5mm) to dampen environmental noise by up to 42 dB, and solar-reflective tinted glass for tropical coastal resorts.
Perimeter access control systems are rapidly converging with fenestration packages. Industrial cantilever automatic sliding gates fabricated from reinforced aluminum alloy eliminate floor track maintenance while integrating seamlessly with smart building IoT systems, biometric access controllers, and automated vehicular sensors.
Comparative reference table for architects, specifiers, and procurement officers evaluating system parameters.
| System Category | Wall Thickness | Standard Glass Configuration | Thermal Barrier | Water / Wind Resistance | Acoustic Rating (STC) |
|---|---|---|---|---|---|
| Thermal Break Casement Window | 1.4 mm – 2.0 mm | 5mm + 20A + 5mm Double Low-E Tempered | PA66-GF25 Strip (24mm Cavity) | Class 4 Air / 700Pa Water / 4.5kPa Wind | 38 – 42 dB |

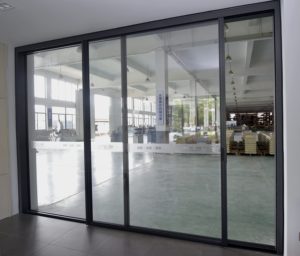

| Heavy-Duty Exterior Patio Sliding Door | 1.8 mm – 3.0 mm | 6mm + 12Ar + 6mm Toughened Safety Glass | Multi-Cavity Thermal Strip | Class 3 Air / 500Pa Water / 3.5kPa Wind | 35 – 40 dB |
| Bi-Fold / Accordion Glass Door | 2.0 mm – 2.2 mm | 5mm + 14A + 5mm Tempered Clear | Polyamide Insulated Frame | Class 3 Air / 450Pa Water / 3.0kPa Wind | 34 – 38 dB |
| Commercial Glass Curtain Wall (SSG / Unitized) | 2.5 mm – 4.0 mm | 6mm Low-E + 12Ar + 6mm Laminated (6+1.14+6) | Structural Silicone Thermal Separation | ASTM E330 / AS2047 High-Rise Certified | 42 – 45 dB |
| Interior Glass Partition & Movable Wall | 1.2 mm – 1.6 mm | 8mm / 10mm Toughened Acoustic Glass | Non-Thermal / Slim Frame | Interior Acoustic Isolation (N/A Wind) | 32 – 36 dB |

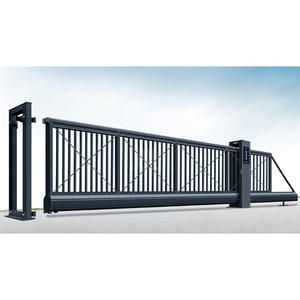

| Cantilever Automatic Main Gate | 3.0 mm – 5.0 mm | Solid Aluminum / Decorative Grill Slat | Heavy Aluminum Frame Structural Alloy | High Corrosion Resistance / IP65 Motor | N/A Structural Gate |
How top trusted factories guarantee zero-defect delivery across international ocean container routes.
Every order is translated into detailed CAD/BIM elevation drawings showing profile dimensions, opening directions, water drainage channels, and hardware installation centers for client sign-off.
High-purity 6063 aluminum billets are extruded and heat-treated to T5 or T6 tempers. Electrostatic powder coating or PVDF spraying guarantees uniform micron thickness across all surfaces.
Computer numerical control (CNC) cutting centers notch lock pockets, drainage slots, and hinge positions within 0.1mm tolerances. Corner joints are injected with two-component adhesive and hydraulically crimped.
Insulating glass units are set using structural silicone and double-lip EPDM gaskets (Ethylene Propylene Diene Monomer), maintaining elasticity under extreme thermal expansion cycles (-40°C to +80°C).
Random units from each project lot undergo mock-up assembly in the workshop to test smooth sliding track movement, lock alignment, frame squareness, and water tightness chamber sealing.
Finished frames are wrapped in protective PE anti-scratch film, corner-shielded with high-density foam, and packed inside fully enclosed fumigated plywood crates suitable for FCL or LCL ocean shipping.
Clear, authoritative answers to common engineering, logistics, and customization queries.
Connect with our senior fenestration engineers today. Submit your CAD drawings, opening schedules, or tender documents for a quick technical proposal and factory-direct quotation within 24 hours.
