Top Trusted Aluminium Pivot Doors Manufacturer & Supplier

Architectural White Paper & B2B Procurement Guide: High-Performance Thermal Decoupling, Heavy-Duty Kinematics & Bespoke Structural Glazing Systems.

Architectural White Paper

Engineering Large-Scale Aluminium Pivot Doors for Modern Built Environments

Aluminium pivot entry doors have evolved from luxury architectural concepts into essential structural components for high-end residential villas, commercial headquarters, and hospitality developments globally. As structural openings expand beyond traditional hinge limits, specifying high-load offset pivot assemblies requires precise structural engineering, advanced thermal break technology, and robust weather-proofing systems.

Strategic Procurement Insight for Architects & General Contractors

Unlike standard side-hung entry doors, an oversized aluminium pivot door transfers its dead load directly to the floor substrate via a concealed heavy-duty hydraulic floor spring. This architectural mechanism allows for panel weights exceeding 1,000 kg (2,200 lbs) and dimensions up to 6.0 meters in height. To maintain structural deflection limits under severe wind loads (up to 5,000 Pa), manufacturers must utilize T6-tempered structural extrusions (EN AW-6063 T6 or EN AW-6060 T66), reinforced polyamide PA66GF25 thermal barriers, and perimeter multi-point locking kinematics.

Catalog Showcase

Flagship Aluminium Pivot Doors & Exterior Entry Systems

Factory-direct OEM/ODM manufacturing engineered to exact structural drawings, international compliance codes, and local climate criteria.

Minimalist Aluminum Pivot Door System Custom Made Ultra-Slim Series

Minimalist Aluminum Pivot Door System Custom Made

Engineered with narrow sightlines, concealed pivot hinges, and integrated magnetic seals for modern residential luxury entrances.

Profile: 2.0mm T6
Thermal Break: PA66GF25
Inquire Now
Fuson Modern Home Main Entrance Security Entry Front Doors Aluminum Glass Pivot Door Security Entry

Fuson Modern Home Main Entrance Security Entry Front Doors Aluminum Glass Pivot Door

High-security exterior pivot door integrating multi-point security locking, double tempered Low-E glass, and reinforced metallic finish.

Glass: 5+20A+5 Low-E
Locking: 5-Point Auto
Inquire Now
Custom OEM American Modern Durable Aluminium Wooden Residential Home Villa Entrance Security Front Entry Exterior Pivot Doors Alu-Wood Hybrid

Custom OEM American Modern Durable Aluminium Wooden Residential Home Villa Entrance Pivot Doors

Combines exterior weather-resistant T6 aluminium cladding with internal solid natural timber veneer for premium estate entrances.

Core: Solid Composite
Finish: PVDF / Anodized
Inquire Now
Foshan Factory Slimline Series Pivot Doors Steel Looked Frame Glass Pivot Door Industrial Loft

Foshan Factory Slimline Series Pivot Doors Steel-Look Frame Glass Pivot Door

Industrial aesthetic with narrow architectural grid lines, high-grade powder coating, and heavy-duty 360-degree top/bottom pivot pins.

Style: Steel-Look Grid
Cycle Test: 500,000 Cycles
Inquire Now
Pivot Door Modern Cast Aluminium CE Marked RC3 Thermal Break Custom Size Villa Entrance Door For House Hotel RC3 Anti-Burglary

Pivot Door Modern Cast Aluminium CE Marked RC3 Thermal Break Villa Entrance Door

CE-marked heavy cast aluminium exterior panel featuring RC3 burglar resistance certification and superior thermal insulation properties.

Security: EN 1627 RC3
U-Factor: < 1.2 W/m²K
Inquire Now

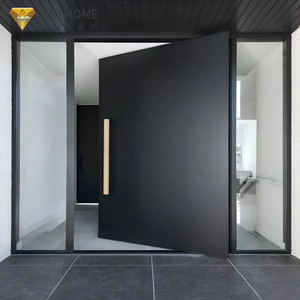

Aluminum Alloy Pivot Door with Concealed Hinge Mechanism - Anti-Impact External Pivot Entrance Door for Home and Hotel Concealed Kinematics

Aluminum Alloy Pivot Door with Concealed Hinge Mechanism - Anti-Impact External Entrance Door

Fully concealed floor spring closing mechanism with hold-open capability, soft-close damping, and high impact resistance.

Max Capacity: 800 KG
Damping: Hydraulic Soft
Inquire Now

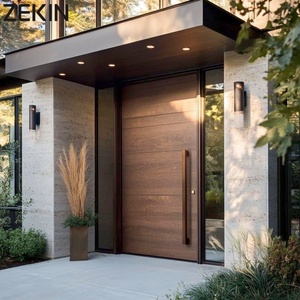

ZEKIN Modern American Design House Heat Insulation Fire Prevention Luxury Entrance Pivot Door Fire & Heat Rated

ZEKIN Modern Design Heat Insulation Fire Prevention Luxury Entrance Pivot Door

Multi-layered insulated core with intumescent fire-resistant perimeter gaskets, designed to meet North American and European structural standards.

Fire Rate: EI30 / EI60
Acoustics: STC 42 dB
Inquire Now
Best Selling Automatic Hurricane Proof Galvanized Steel Roller Shutter Door Garage Roll up Door Extreme Wind Protection

Best Selling Automatic Hurricane Proof Roller Shutter Door System

Heavy-gauge reinforced roll-up door engineered for extreme wind pressure zones, commercial garages, and hurricane-prone coastal regions.

Wind Load: 5500 Pa
Operation: Smart Motor
Inquire Now
Manufacturing Supremacy

Doorreme Industry: Foshan’s Benchmark OEM/ODM Manufacturing Powerhouse

Providing turnkey architectural facade solutions, custom aluminum extrusions, and certified fenestration products to developers across 140+ countries.

123,000
m² Factory Area
2004
Year Established
140+
Global Export Markets
800+
Experienced Staff
40+
Patent Certificates

Automated German Kinematic Machinery

Equipped with 5-axis CNC machining centers, automated corner-crimping lines, and high-precision profile cutting machinery from Germany and Italy, maintaining machining tolerances within ±0.1mm.

Surface Finish & Coastal Corrosion Defense

In-house vertical powder coating and fluorocarbon (PVDF) lines certified by Qualicoat. Our profile treatments exceed 3,000 hours of salt spray testing (ASTM B117), ideal for harsh marine and tropical zones.

Comprehensive Engineering & BIM Support

From preliminary wind-load calculations to structural shop drawings and BIM object generation, our engineering team works directly with architects to ensure smooth site installation and code compliance.

Industry Horizon

Future Architectural & Procurement Trends in Aluminium Pivot Systems

Analyzing structural evolution, carbon footprint regulations, smart home integration, and global supply chain strategies for 2025–2030.

1. Passive House Standard & Low U-Factors

With global building energy mandates tightening (such as EU NZEB and US Title 24), aluminium pivot doors must eliminate the metal bridge thermal bypass. Modern systems utilize multi-chamber polyamide thermal breaks (PA66GF25 with 25% glass fiber reinforcement) combined with aerogel insulation infills. Paired with triple-pane Low-E insulated glass units (IGUs) with warm-edge spacers, overall door U-factors drop below 0.80 W/m²K (0.14 BTU/h·ft²·°F).

2. Smart Automation & Biometric Kinematics

Heavy architectural panels require low operational force. Future procurement favors motorized automatic pivot drivers concealed within the head transom or sub-floor. These systems integrate seamlessly with smart building automation via KNX, BACnet, or biometric access controls (facial recognition, 3D fingerprint sensing). Automated drop-down acoustic drop seals deploy automatically upon closing to solve air infiltration.

3. Ultra-Oversized Glass & Monolithic Panels

Architectural demand is moving rapidly toward continuous single-panel glass surfaces with minimal perimeter frame visibility. Advanced pivot hardware now features 3D adjustable pivot axis points (allowing lateral, vertical, and tilt tuning post-installation). This allows structural glass panels reaching up to 3000mm in width and 6000mm in height without structural sagging over extended service life.

4. Hurricane Impact & Extreme Weather Defense

Coastal development projects demand compliance with Florida High Velocity Hurricane Zone (HVHZ) standards and ASTM E1886/E1996 missile impact tests. Next-generation pivot doors integrate SentryGlas® (SGP) structural interlayers, 4-sided continuous EPDM gaskets, and structural silicone glazing (SSG) to withstand wind pressures over ±5,000 Pa and extreme water penetration resistance.

Engineering Matrix

B2B Architectural Performance & Specification Standards

Standardized laboratory performance metrics for Doorreme heavy-duty aluminium pivot door systems.

Performance Parameter Standard Configuration High-Performance / Thermal Break Testing / Compliance Standard
Profile Alloy Grade EN AW-6063 T5 / T6 EN AW-6060 T66 High Precision ASTM B221 / GB 5237
Profile Wall Thickness 2.0 mm – 2.5 mm 3.0 mm – 4.0 mm Structural Wall EN 12020-2
Thermal Insulation (U-Factor) 2.2 – 2.8 W/m²K 0.80 – 1.3 W/m²K (PA66GF25 Insulated) ISO 10077-2 / NFRC 100
Max Load Capacity per Panel 300 kg – 500 kg Up to 1,000 kg (Floor Spring Hydraulic) EN 1154 Kinematic Standard
Air Permeability Class 3 (600 Pa) Class 4 (600 Pa Continuous Seal) EN 12207 / ASTM E283
Water Tightness Class 7A (300 Pa) Class E1050 (1050 Pa Subfloor Drain) EN 12208 / ASTM E331
Wind Load Resistance Class C4 (1600 Pa) Class C5 / HVHZ (> 3600 Pa to 5000 Pa) EN 12210 / TAS 202
Acoustic Insulation (Rw/STC) STC 32 dB STC 42 dB – 45 dB (Laminated IGU) ISO 717-1 / ASTM E90
Surface Coating Durability Powder Coating (> 60 µm) PVDF 3-Coat Fluorocarbon (> 40 µm) AAMA 2605 / Qualicoat Class 2
Technical Knowledgebase

B2B Procurement & Engineering FAQ

Crucial structural, operational, and shipping questions answered by our chief fenestration engineers.

How do oversized pivot doors prevent water ingress at the bottom floor threshold?
Water tightness in pivot doors is achieved through a multi-tiered defense strategy. Unlike hinged doors with a continuous stop rebate, pivot doors rotate on an axis, requiring specialized sealing mechanics. We utilize a combination of automatic drop-down mechanical seals (which extend high-density EPDM wipers upon closing), integrated magnetic seals along the vertical style, and an aluminum sub-floor drainage channel with one-way weep valves. For extreme weather zones, we recommend a flush-mounted drop threshold with internal sill pan drainage.
What sub-floor structural prep work is required before installing a heavy pivot door?
Because heavy-duty pivot doors transfer the majority of their dead weight to the floor rather than the wall jambs, a structurally sound concrete slab or structural steel beam is essential. The floor recessed cavity must accommodate the floor spring box (typically 60mm–90mm deep). The sub-floor must be level within ±1.5mm across the opening width. Prior to pouring concrete or laying finished floor tiles, structural anchorage plates should be positioned according to the engineering drawings provided by Doorreme.
Can Doorreme fabricate custom pivot doors according to architectural shop drawings?
Yes, 100% of our production is custom-engineered to project drawings. Our engineering office translates architect CAD elevations into detailed production shop drawings specifying profile extrusions, glass build-ups, hinge offset calculations, hardware placements, and installation clearances. Production begins only after the client or project consultant signs off on the final engineering drawings.
How are fragile oversized pivot glass doors packaged for international sea freight?
Export packaging complies with international ISPM 15 standards. Doors can be shipped as fully assembled units (for standard sizes) or in Knocked-Down (KD) format for ultra-large spans. Each door panel is wrapped in protective PE film, edge-protected with high-density EPE foam, and encased inside a fully enclosed fumigation-free plywood crate with internal shock-absorbing rubber padding and steel strapping.
What certifications do your aluminum pivot door systems carry for North America and Europe?
Our products undergo testing under European (EN) and North American (AAMA/WDMA/CSA) standards. Certified features include CE marking under EN 14351-1, burglar resistance ratings up to RC3 (EN 1627), sound insulation compliance under ISO 717-1, and NFRC thermal performance ratings. For coastal North American projects, specific impact series comply with Florida Building Code (HVHZ) requirements.
What hardware options are supplied with Doorreme aluminum pivot doors?
We partner with top-tier international hardware manufacturers such as Dormakaba, Geze, FritsJurgens, and German Roto, alongside high-end proprietary heavy-duty hardware systems. Options include concealed hydraulic floor springs, 3D adjustable top pivot pins, electric multi-point locks, integrated LED pull handles, biometric access controls, and soft-closing hydraulic dampers.

Engineered to Order. Delivered Worldwide.

Have project drawings, schedule of openings, or structural requirements ready? Speak directly with our senior fenestration technical director for factory-direct quotes and engineering feedback within 24 hours.
